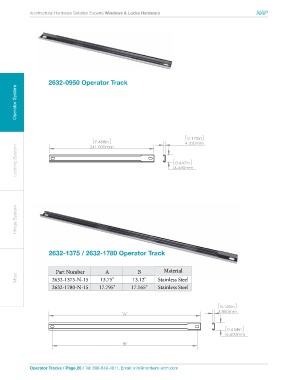

Page 20 - NAP Catalogue
P. 20
Architectural Hardware Solution Experts Windows & Locks Hardware
Operator System 2632-0950 Operator Track
Locking System 9.488in 0.170in
241.000mm 4.320mm
0.647in
16.440mm
Hinge System
2632-1375 / 2632-1780 Operator Track
Misc Part Number A B MaterialUNLESS OTHERWISE SPECIFIED: NAME DATE Part
2266NA33ro22cr--ht11hi73te78er05cn--tNNur--a11l55 13.75" 13.12" 7/29/2015
17.795" 17.165" DIMENSIONS ARE IN INCHES DRAWN ROY.X
Products CHECKED
TOLESRAtNaCiESn: less Steel ENG APPR. TITLE:
PROPRIETARY AND CONFIDENTIAL Stainless SteelFRACTIONAL 1/200"
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE 2856-0260
PROPERTY OF NAP INC. ANY REPRODUCTION IN PART OR AS A ANGULAR: MACH 1°
WHOLEWITHOUT THE WRITTEN PERMISSION OF NAP INC. IS BEND 1°
PROHIBITED.
1 PLACE DECIMAL 0.015" [0.381mm] MFG APPR.
5 2 PLACE DECIMAL 0.010" [0.254mm] Q.A.
3 PLACE DECIMAL 0.005" [0.127mm]
"A" MATERIAL: COMMENTS: 0.150in SIZE DWG.
FINISH: 3.800mm
USED ON A 20
NEXT ASSY
APPLICATION DO NOT SCALE DRAWING 0.654in SCALE: 2:1
16.600mm2
4 3
"B"
Operator Tracks / Page 20 / Tel: 800-849-4011, Email: [email protected]
