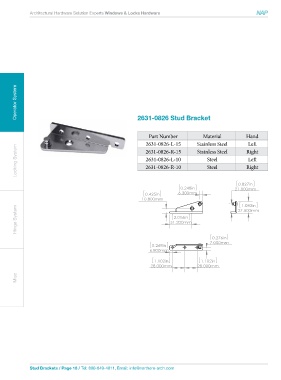

Operator System 2631-0826 Stud Bracket

Locking System Part Number Material Hand
2631-0826-L-15 Stainless Steel Left
2631-0826-R-15 Stainless Steel Right
2631-0826-L-10 Left
2631-0826-R-10 Steel Right
Steel

0.425in 0.248in 0.827in
10.800mm 6.300mm 21.000mm

Hinge System 1.083in
27.500mm

2.016in
51.200mm

0.268in 0.276in
6.800mm 7.000mm

1.102in 1.102in
28.000mm 28.000mm
