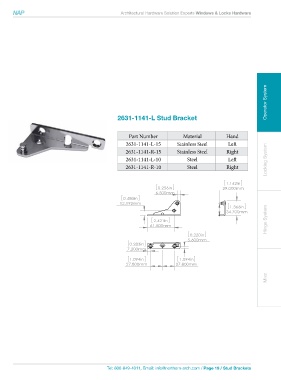

2631-1141-L Stud Bracket Operator System

Part Number Material Hand Locking System
2631-1141-L-15 Stainless Steel Left
2631-1141-R-15 Stainless Steel Right
2631-1141-L-10 Left
2631-1141-R-10 Steel Right
Steel
1.142in
0.256in 29.000mm
6.500mm
1.366in
0.480in 34.700mm Hinge System
12.192mm

2.421in 0.220in
61.500mm 5.600mm

0.283in
7.200mm

1.094in 1.094in
27.800mm 27.800mm

Misc

UNLESS OTHERWISE SPECIFIED: NAME DAT

DIMENSIONS ARE IN INCHES DRAWN ROY.X 7/28/20
TOLERANCES: CHECKED
Northern FRACTIONAL 1/200" ENG APPR.
Architectural ANGULAR: MACH 1° MFG APPR.
Products Q.A.
BEND 1° COMMENTS:
1 PLACE DECIMAL 0.015" [0.381mm]
PROPRIETARY AND CONFIDENTIAL 2 PLACE DECIMAL 0.010" [0.254mm]
3 PLACE DECIMAL 0.005" [0.127mm]
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF NAP INC. ANY REPRODUCTION IN PART OR AS A MATERIAL:
WHOLEWITHOUT THE WRITTEN PERMISSION OF NAP INC. IS
PROHIBITED. FINISH:

NEXT ASSY USED ON

APPLICATION DO NOT SCALE DRAWING

5 43 2
