Architectural Hardware Solution Experts Windows & Locks Hardware

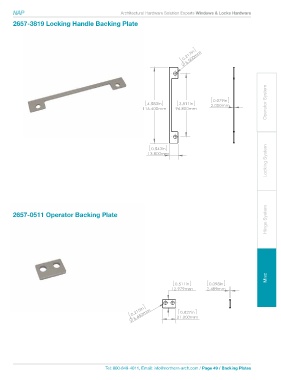

2657-3819 Locking Handle Backing Plate

0.251.570in0mm

4.583in 3.811in 0.079in Operator System
116.400mm 96.800mm 2.000mm

0.543in Locking System
13.800mm

2657-0511 Operator Backing Plate UNLESS OTHERWISE SPECIFIED: NAMEHinge System D

Northern DIMENSIONS ARE IN INCHES DRAWN ROY.X 8/18
Architectural TOLERANCES: CHECKED
Products FRACTIONAL 1/200" ENG APPR.
ANGULAR: MACH 1° MFG APPR.
PROPRIETARY AND CONFIDENTIAL Q.A.
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE BEND 1° COMMENTS:
PROPERTY OF NAP INC. ANY REPRODUCTION IN PART OR AS A 1 PLACE DECIMAL 0.015" [0.381mm]
WHOLEWITHOUT THE WRITTEN PERMISSION OF NAP INC. IS 2 PLACE DECIMAL 0.010" [0.254mm]
PROHIBITED. 3 PLACE DECIMAL 0.005" [0.127mm]

5 MATERIAL:

FINISH:

NEXT ASSY USED ON

APPLICATION DO NOT SCALE DRAWING Misc

4 0.511in 0.0938in
12.979mm 2.489mm

0.52.1455i0nmm 0.827in
21.000mm

Tel: 800-849-4011, Email: [email protected] / Page 49 / Backing Plates
