P. 47
Architectural Hardware Solution Experts Windows & Locks Hardware

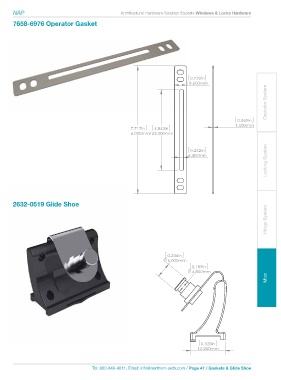

7658-6976 Operator Gasket
0.732in Operator System
18.600mm
7.717in 4.843in 0.059in
196.000mm123.000mm 1.500mm
0.252in Locking System
6.400mm
2632-0519 Glide Shoe Hinge System
UNLESS OTHERWISE SPECIFIED: NAME DATE Part
8/16/2016
DIMENSIONS ARE IN INCHES DRAWN ROY.X
TOLERANCES: CHECKED
Northern FRACTIONAL 1/200" ENG APPR. TITLE:
Architectural ANGULAR: MACH 1°
Products
BEND 1°
0.236in1 PLACE DECIMAL 0.015" [0.381mm] MFG APPR. 2856-0260
Q.A.
2 PLACE DECIMAL 0.010" [0.254mm]
3 PLACE DECIM6AL.000.0005"m[0.1m27mm]
PROPRIETARY AND CONFIDENTIAL MATERIAL: 0.18C9OiMnMENTS: SIZE DWG.
4.800mm
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE A 201 Misc
PROPERTY OF NAP INC. ANY REPRODUCTION IN PART OR AS A FINISH:
WHOLEWITHOUT THE WRITTEN PERMISSION OF NAP INC. IS SCALE: 2:1W
PROHIBITED. NEXT ASSY USED ON
2
5 APPLICATION DO NOT SCALE DRAWING
4 3
0.520in
13.200mm
Tel: 800-849-4011, Email: [email protected] / Page 47 / Gaskets & Glide Shoe
