P. 32
Architectural Hardware Solution Experts Windows & Locks Hardware

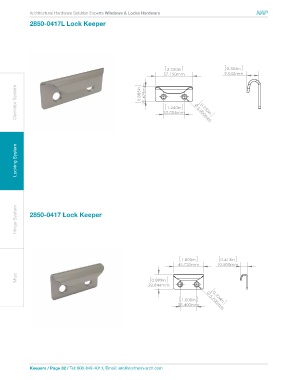

2850-0417L Lock Keeper
2.250in 0.356in
57.150mm 9.042mm
Operator System 0.885in 1.260in
22.479mm 32.004mm
0.253.29i0n0mm
Locking System
UNLESS OTHERWISE SPECIFIED: NAME DATE
4/10/2015
Hinge System DIMENSIONS ARE IN INCHES DRAWN KW
TOLERANCES: CHECKED
2850-0417 Lock KeNAerocprhtehitreercntural FRACTIONAL 1/200" ENG APPR.
ANGULAR: MACH 1° MFG APPR.
Products Q.A.
BEND 1° COMMENTS:
PROPRIETARY AND CONFIDENTIAL 1 PLACE DECIMAL 0.015" [0.381mm]
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE 2 PLACE DECIMAL 0.010" [0.254mm]
PROPERTY OF NAP INC. ANY REPRODUCTION IN PART OR AS A 3 PLACE DECIMAL 0.005" [0.127mm]
WHOLEWITHOUT THE WRITTEN PERMISSION OF NAP INC. IS
PROHIBITED. MATERIAL:
5 FINISH:
NEXT ASSY USED ON
APPLICATION DO NOT SCALE DRAWING
4 1.800in 0.413in 2
3 10.500mm
45.720mm
Misc 0.899in
22.844mm
0.252.47i0n0mm
1.000in
25.400mm
Keepers / Page 32 / Tel: 800-849-4011, Email: [email protected]
