P. 40
Architectural Hardware Solution Experts Windows & Locks Hardware

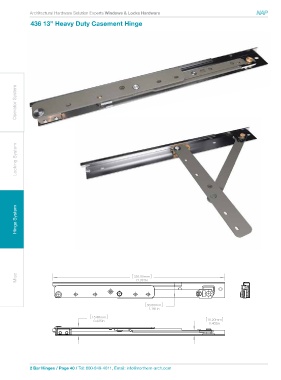

436 13” Heavy Duty Casement Hinge
Operator System
Locking System
Hinge System
Misc 330.00mm
12.992in
30.00mm
1.181in
15.88mm 10.20mm
0.625in 0.402in
Northern
Architec
Product
2 Bar Hinges / Page 40 / Tel: 800-849-4011, Email: [email protected] PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
PROPERTY OF NAP INC. ANY REPRODUCTION IN PART O
WHOLEWITHOUT THE WRITTEN PERMISSION OF NAP INC. I
